GV3000E-AC008-AA-DBU-RFI

by

Reliance Electric GV3000 Drives

The GV3000E-AC008-AA-DBU-RFI GV3000 Series Drive by Reliance Electric. New & Remanufactured. Technical Specs, Fault Codes, Wirinig & More.

GV3000E-AC008-AA-DBU-RFI Image 1 GV3000E-AC008-AA-DBU-RFI Image 2 GV3000E-AC008-AA-DBU-RFI Image 3

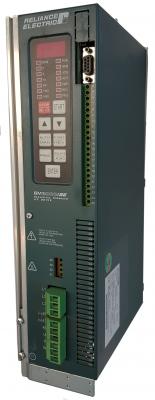

GV3000E-AC008-AA-DBU-RFI Image 1


Technical Specs:
MPN:GV3000E-AC008-AA-DBU-RFI
Input Voltage:380-460 VAC +/-10%
Input KVA:10.4-8.0
Input Amps:13-10
Output Amps at 2Kz:8.5
Output Amps at 4Kz:8.5
Output Amps at 8Kz:5.5
Series:GV3000 drives
Dimensions:95 (3.74) x 378 (14.88) x 200 (7.87)
Weight:5.5 kg / 22 lbs
CE Filter:with a CE filter

Stock Level:

In Stock

Shipping:

Ships Today

Information:

We do our best to stock both
New and Reconditioned Surplus

Contact Info:

Phone: 1-919-372-8413
Email: sales@distcache.org

quote button
Check Out Our Repair Page
Warranty
Worldwide Shipping
Payment Options

Exchange Program:
We would like to offer an upfront discount on your purchase with the return of your defective unit to us. We value the opportunity to repair your defective unit in order to keep our stock shelves full for other customers. Please ask today and we will provide the maximum discount we can offer for that given part. We can even send a shipping label in the box for the return.


The GV3000E-AC008-AA-DBU-RFI is a GV3000 AC Drive manufactured by Reliance Electric. Although now obsolete Distribution Cache continues to supply the GV3000E-AC008-AA-DBU-RFI as well as other drives in this series. The GV3000E-AC008-AA-DBU-RFI is a 10.4-8.0KVA 380-460 VAC +/-10% AC Drive. This series of drives comes in three distinct types, NEMA Style, Power Module Style, and Bookshelf Style. The GV3000E-AC008-AA-DBU-RFI is a Bookshelf Style Drive with the physical dimensions 95 (3.74) x 378 (14.88) x 200 (7.87) and a weight of 5.5 kg / 22 lbs. Certain models come equiped with a CE Emission Filer. The GV3000E-AC008-AA-DBU-RFI comes with a CE filter. Let Distribution Cache be your go-to source for the GV3000 series and trust that our unparralleled warranty will keep you up and running for years to come.

Distribution Cache Shipping Info and Options

Shipping Carriers: Here at Distribution Cache we ship using UPS, FedEx, DHL, or TNT. In most cases we get very competitive rates based on our volume and will be happy quote shipping cost to your location upon request. We also know that many customers would prefer to ship collect on their own account numbers and welcome this option.

Shipping Blind: We recognize that many of our customers intend to re-sell the product to their end user. We respect our customer’s relationships with their clients and offer blind shipping as an option to ensure that the package arrives in the most clandestine way possible.

Shipping Process: We take pride in the way we package your order and spare no cost in making sure that it arrives safely at your facility. In the case of new parts, we are always sure to package the factory box inside another larger box for safe transit. For reconditioned parts we often use Distribution Cache customized packaging that is specially made to protect the products from the bumps and falls present during shipment.



Shipping Options:

Next Day Air Early AM - This service is the fastest overnight delivery option available. For most locations the package will be guaranteed by 8:30AM.

Next Day Air – This service guarantees delivery by 10:30AM and is the most frequently used option for overnight shipments.

Next Day Air Saver – This cost saving overnight alternative guarantees delivery by 3PM the next day.

2nd Day Air – For domestic shipments that would take 3-5 days if shipped via Ground, sometimes having the order in 2 days is a great way to go

Ground – Ground is the most inexpensive shipping option provided. Please ask if we are doing a “free domestic ground” shipping promotion on your order. We often provide free ground shipping on larger orders.



Emergency Courier – At times we can help work with a courier service to get the part to your facility during downtimes scenarios. We prefer that the customer sets up the courier but we can be there to make sure the product is handed off to the driver. Please give us a call to see if this is an option on your order.

Please Note: Products listed as “ships today” can ship same-day if an order is placed before 4PM. For larger drives and motors we ask that notification for same-day shipments be provided by 2PM at the latest. For any products listed as “ships in 3-5 days”, please give us a call to see if this can be expedited.

What are GV3000 Bookshelf Drives?

The GV3000/SE AC Bookshelf drive is a PWM (pulse-width-modulated) drive that supplies vector and general purpose regulation for a broad array of uses.

Using vector regulation, high dynamic response can be provided by keeping total rated motor torque at zero speed, and also control motor speed both ways. The drive can supply this functionality either with encoder feedback (flux vector control or FVC) or without (sensorless vector control or SVC).

Using general purpose (volts/hertz or V/Hz) regulation, the drive is suitable for a wide array of applications requiring flexible speed control of motors.



What is Enclosure Rating on my GV3000 drive?

GV3000/SE Bookshelf drives have an IP20 evaluation. An IP evaluation designates the enclosure’s degree of protection. The first number (2) suggests the enclosure protection against solid objects greater than 12 mm. The next number (0) signifies the enclosure isn't watertight. Notice the drive is designed to be used inside a bigger, user-supplied enclosure.



What is the Regulator Board?

A microprocessor on the Regulator board performs actual drive regulation.  The Regulator panel accepts an external speed reference signal and power circuit feedback signals, along with information from an encoder that's connected to the motor when set up for FVC regulation.

The Regulator panel supplies PWM gating signals to the IGBT power apparatus. On the basis of the output signal from the control loop, the regulator sends PWM gating signals to the gate drivers to the isolated gate drivers. These drivers change the Insulated Gate Bipolar Transistors (IGBTs), generating a PWM waveform that corresponds to the rate (FVC regulation) or frequency (V/Hz regulation) benchmark. The IGBTs may be changed at either a 2, 4, or 8 kHz carrier frequency.



What does the Keypad/Display do on my GV3000 drive?

The front panel keypad/screen is utilized to program and use the drive. The four-character screen is utilized to signal drive parameters and error codes. The fourteen single LEDs indicate drive status and operating mode, in addition to identifying drive output signals.



Consult with the GV3000/SE Bookshelf Drive Software Start Up and Reference manual (D2-3426) to find out more regarding the keypad/screen.





What are General Requirements for the Installation Site of a GV3000 drive?

It is necessary to plan before installing a GV3000/SE Bookshelf drive to make sure the drive’s environment and operating conditions are suitable. Notice that no apparatus can be mounted behind the drive. This place should be kept clear of all power and control wiring. Before continuing with drive setup read these instructions.





How do I Making Sure Environmental Conditions are  Met for Installation of my Drive?

Before deciding on an installation site, consider the following guidelines:

Verify that drives can be kept clean, cool, and dry.

The area chosen should allow the space required for proper air flow as defined in section 3.1.3.

Be sure that drives are away from oil, coolants, or other airborne contaminants.

 Do not install the drive above 1000 meters (3300 feet) without derating output power. For every 91.4 meters (300 feet) above 1000 meters (3300 feet), derate the output current 1%.



AC Line Distribution System Capacity (Maximum) for 460 VAC Units
Units Not Equipped with an AC Mains Filter
Units Equipped with an AC Mains Filter
315 KVA, three-phase with 10,000 amps symmetrical fault current capacity with a line impedance of less than 5%.
1000 KVA, three-phase with 30,000 amps symmetrical fault current capacity with a line impedance of less than 5%.
Control Method All-digital vector, sinusoidal pulse-width-modulated (PWM)
Displacement Power Factor 0.96
Line Frequency 50/60Hz (+2 Hz)
Line Voltage Variation -10% to +10%
Line Dip Ride-Through FVC: Maximum 500 milliseconds
V/Hz, SVC: Adjustable up to 999.9 seconds (See P.042)
Motor Lead Lengths 76 meters (250 feet) typical (refer to section 3.2.2.4)
Remote Operator Control Wire Length Up to 303 meters (1000 feet) from the drive
Analog Speed Reference Resolution 1/1024 (10 bits) 0.1%
Acceleration Adjustment Range 0.1 to 999.9 seconds (within the ability of current)
Carrier Frequency 2 kHz, 4 kHz, or 8 kHz, software-selectable
Current Limit Adjustment Vector: U.006 to 150% (based on motor nameplate rating) V/Hz: 50% to 110% (based on drive nameplate rating)
Service Factor 1.0
Speed Adjustable Range From 0 RPM to maximum speed (vector)
Speed Regulation Vector: 0.01% FVC, 0.5% SVC (steady state) V/Hz: Motor slip dependent
Speed Reference Resolution 1 RPM with local keypad, -4095 to +4095 counts with a network or serial reference
Torque Control Response 180 to 220 Hz
Torque Linearity +3% with optimal parameter setting (typical) (see parameter U.005)

Environmental Condition

Condition Specification
Operating Temperature (Ambient) 0 to 40C 32 to 104F coolant air inlet temperature at heatsink
Derating factor at 45C ambient: 7.5% Derating factor at 50C ambient: 15%
Storage Temperature (Ambient) -25C to +55C
Transportation Temperature (Ambient) -25C to +70C (+70C during a maximum 24 hours)

Terminal Strip Input Specs

Signal Type Terminal(s) Specification
Speed Reference Input 12-15 10 V (@ 50K ohm input impedance or 20 mA)
Digital Inputs (1 - 8) 16 +24 VDC Isolated Supply
17 Remote/Local (Default)
18 Ramp 1/Ramp 2 (Default)
19 Forward/Reverse (Default)
20 Function Loss
21 Run/Jog
22 Reset
23 Stop
24 Start

Encoder Feedback Device Specs (FVC Regulation Only)

Specification Rating
Motor Poles 2, 4, 6, or 8 poles
Overcurrent IET 200% load (based on drive nameplate rating)
Overload Current Rating 150% for 1 minute (based on drive nameplate rating)
Speed Control Range 1:600 with 1024 PPR
Speed Control Response 15 Hz (typical)
Encoder Feedback 15 V differential quadrature, encoder incremental (512 PPR, 1024 PPR, 2048
PPR, 4096 PPR)
Service Factor 1.0

Input Signal Response Times (Maximum)

Signal Type and Source Volts/Hertz Regulation* Vector Regulation*
Keypad START 150 milliseconds 130 milliseconds
Terminal Strip:
START 126 milliseconds 105 milliseconds
STOP, RESET, FL 75 milliseconds 75 milliseconds
Preset Speeds 75 milliseconds 75 milliseconds
Analog Speed/Trim Reference 16 milliseconds 5 milliseconds
Analog Torque Reference N/A 0.5 milliseconds
Network:
START 46 milliseconds + network transport time 25 milliseconds + network transport time
STOP, RESET, FL 26 milliseconds + network transport time 25 milliseconds + network transport time
Analog Speed/Trim Reference 5 milliseconds + network transport time 5 milliseconds + network transport time
Torque Reference N/A 0.5 milliseconds +network transport time
