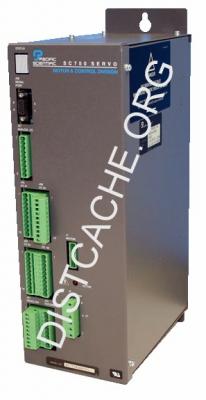

SC753A-001-02 Image 1


The SC753A-001-02 is a single axis digital brushless servo-controller in the SC750 Servo Drives by Pacific Scientific. This programmable unit features a peak current rating of 15A with a continuous value of 7.5A, and it uses the patented PacSci ServoBASIC Plus™ for programming. It is fully compatible with Pacific Scientific and other similar brushless servo motors and optimizes performance through its inbuilt single resolver feedback. This model is designed for precision movement control, and its easily accessible front access panel increases versatility in diverse environments. The device has a motor-mounted single resolver that provides complete digital feedback information for commutation as well as speed and position feedback signals. It also features auto-tuning based on drive preference and motor model, and its encoder emulates an incremental encoder yield, converting resolver status data to incremental output. The SC753A-001-02 servo controller is a fully enclosed, stand-alone unit with differential line drivers and 16,384 PPR using a 230-volt AC mains power or 320-volt DC bus operation for high performance.

SC753A-001-02 by Pacific Scientific is a Single Axis Servocontroller unit in the SC750 Series. The SC753A-001-02 features a Power Level of 7.5A cont./15A peak and the 12 bit RDC (+/-22 arcmin, 1024 ppr) Option. This Servo Drive also has a position controller (resolver) and is a Standard Unit.

Revision Part #:

Manufacturer Pacific Scientific
Product Type Digital Brushless Servo-controller
Model SC753A-001-02
Peak Current Rating 15A
Continuous Current Rating 7.5A
Programming PacSci ServoBASIC Plus
Feedback Single resolver feedback
Main Voltage 230-volt AC or 320-volt DC (optional 120 Volts)
Encoder 16,384 PPR (pulses per revolution)
