MDD115D-N-020-N2M-130PA0
Bosch Rexroth Indramat
MDD115D-N-020-N2M-130PA0
Bosch Rexroth Indramat
Description

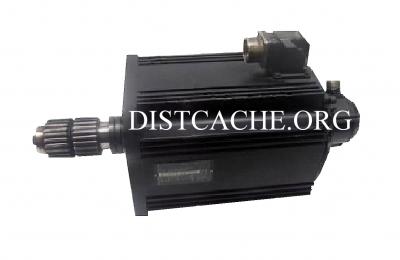

The MDD115D-N-020-N2M-130PA0 is a synchronous motor in the MDD Series by Bosch Rexroth Indramat. This model operates at a nominal speed of 2,000 revolutions per minute, producing a maximum theoretical torque of 177.2Nm. Achieving a favorable torque-inertia ratio due to its low inertia, the motor is ideal for high-speed movements and precise positioning. Its rare-earth or iron oxide permanent magnets contribute to the low inertia. The model is also designed to be maintenance-free with a brushless design and continuously lubricated bearings, extending the service life of the bearings to 30,000 operating hours. The MDD115D-N-020-N2M-130PA0 is suitable for use in challenging environmental conditions, thanks to its sealed housing design, which promotes heat dissipation by natural convection and surface cooling. Further, with an Ingress Protection rating of IP 65 per EN 60529, it is resistant to dust and water jets. The motor features a DIN 6885 compliant keyed output shaft with a sealing ring that offers form-fitting torque transmission and prevents the ingress of liquids.
MDD115D-N-020-N2M-130PA0 by Rexroth, Indramat, Bosch is a Digital AC Servo Motor in the MDD Series. The MDD115D-N-020-N2M-130PA0 features a Nominal Speed of 2000 min and a Centering Diameter of 130 mm. This Digital AC Servo Motor has a Motor Length of D and comes Without Blocking Brake.
Revision Part #:
MDD-115D-N-020-N2M-130PA0MDD115D N 020 N2M 130PA0MDD115D-N-020-N2M-130-PA0MDD115D-N-020-N2M-130-PAOMDD115D-N-020-N2M-130PAOMDD115D-N-O2O-N2M-13OPAOMDD115DN020N2M130PA0| Manufacturer | Bosch Rexroth Indramat |
|---|---|
| Product Type | MDD Motor |
| Model | MDD115D-N-020-N2M-130PA0 |
| Nominal Speed | 2000 RPM |
| Maximum Torque | 177.2 Nm |
| Rotor Inertia | 271 x 10-4 kgm2 |
| Motor Design | Brushless with Permanent Magnets |
| Bearings Lifetime | 30,000 Operating Hours |
| Housing Design | Sealed, IP 65 per EN 60529 |
| Output Shaft Design | Keyway according to DIN 6885, with Sealing Ring |
