MDD115D-N-020-N2M-130GA0
Bosch Rexroth Indramat
MDD115D-N-020-N2M-130GA0
Bosch Rexroth Indramat
Description

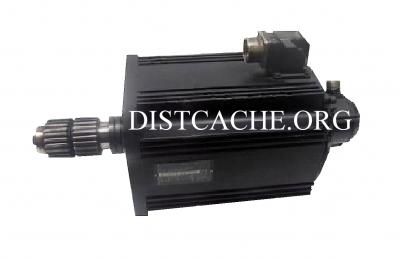

The MDD115D-N-020-N2M-130GA0 is an AC servo motor in the MDD Series by Bosch Rexroth Indramat. Commonly used in various high torque demanding applications, this model is designed to function in conjunction with a digital intelligent drive controller to create a fast and cost-effective motion control system. It operates in both natural and surface cooling modes, delivering a continuous torque of 57 – 76.2 Nm and consuming a constant current of 77 – 102.9 A at a speed of 2000 rpm. The motor winding generates 0.06 Ohms of resistance at 20-degree Celsius, and the motor winding inductivity is 1 mH. Weighing around 60 kg, this model comes under the balance class-N with a standard plain shaft. Its pilot diameter is 130 mm, and it can be installed in any permissible position. The motor also features a B05 and B14 flange design with an operating temperature of 0 to +45-degree Celsius and a maximum mounting height of 1000 meters above sea level. Additionally, it uses digital servo feedback integrated with an optical encoder for absolute indirect position detection, with a power connector placed at the top of the motor for A-side power delivery. Finally, to ensure effective operation, this model should be placed in a dry environment and allows easy cabling.
MDD115D-N-020-N2M-130GA0 by Rexroth, Indramat, Bosch is a Digital AC Servo Motor in the MDD Series. The MDD115D-N-020-N2M-130GA0 features a Nominal Speed of 2000 min and a Centering Diameter of 130 mm. This Digital AC Servo Motor has a Motor Length of D and comes Without Blocking Brake.
Revision Part #:
MDD-115D-N-020-N2M-130GA0MDD115D N 020 N2M 130GA0MDD115D-N-020-N2M-130-GA0MDD115D-N-020-N2M-130-GAOMDD115D-N-020-N2M-130GAOMDD115D-N-O2O-N2M-13OGAOMDD115DN020N2M130GA0| Manufacturer | Bosch Rexroth Indramat |
|---|---|
| Product Type | AC Servo Motor |
| Model | MDD115D-N-020-N2M-130GA0 |
| Cooling method | Natural and Surface |
| Continuous Torque | 57 – 76.2 Nm |
| Operating Speed | 2000 rpm |
| Weight | 60 kg |
| Balance class | N |
| Pilot diameter | 130 mm |
| Flange design | B05 and B14 |
