MDD115C-N-020-N2L-130GB2
Bosch Rexroth Indramat
MDD115C-N-020-N2L-130GB2
Bosch Rexroth Indramat
Description

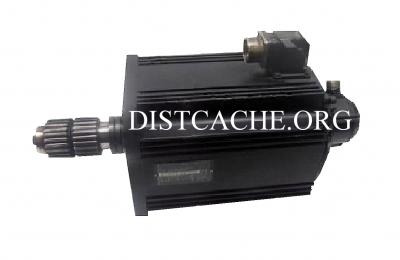

The MDD115C-N-020-N2L-130GB2 is a high-performance servo motor in the MDD Series by Bosch Rexroth Indramat. Its construction features a standard design for the housing as well as top-notch environmental protection due to sealed housing, connectors and shaft seal. This ensures that the motor can withstand adverse environmental conditions due to its IP65 rating. Operating within an ambient temperature range of 0 to 45 degrees Celsius and up to a maximum elevation of 1000 meters assures optimal performance. Effective working of the motor is also dependent on the ideal storage and transportation temperature range of -20 to 80 degrees Celsius. This model is equipped with a 60 Nm blocking brake that operates at 24 volts DC and consumes 1.5 Amps current, having a release delay of 150 milliseconds and clamping delay of 30 milliseconds. Weighing a total of 55.5 kilograms, including the motor's 52 kilograms and brake's 3.5 kilograms, the MDD115C-N-020-N2L-130GB2 is capable of a speed rating of 2000 RPM. When using natural convection, it has a torque rating of 47 Nm and current rating of 51.5 Amps, increasing to 75 Nm torque with surface cooling and 82.2 Amps current. Working within the specified conditions ensures rated values, provided by the servo motor's digital servo feedback. Featuring a plain main output shaft and side B power connection, this motor is recommended to be installed and maintained only by trained and qualified technical personnel to minimize installation errors.
MDD115C-N-020-N2L-130GB2 by Rexroth, Indramat, Bosch is a Digital AC Servo Motor in the MDD Series. The MDD115C-N-020-N2L-130GB2 features a Nominal Speed of 2000 min and a Centering Diameter of 130 mm. This Digital AC Servo Motor has a Motor Length of C and comes With 60.0 Nm Blocking Brake.
Revision Part #:
MDD-115C-N-020-N2L-130GB2MDD115C N 020 N2L 130GB2MDD115C-N-020-N2L-130-GB2MDD115C-N-O2O-N2L-13OGB2MDD115CN020N2L130GB2| Manufacturer | Bosch Rexroth Indramat |
|---|---|
| Product Type | Servo Motor |
| Model | MDD115C-N-020-N2L-130GB2 |
| Design | Standard housing with sealed connectors and shaft |
| Protection Rating | IP65 |
| Ambient Temperature Range | 0 to 45 degrees Celsius |
| Altitude Range | 0 to 1000 meters |
| Storage Temperature Range | -20 to 80 degrees Celsius |
| Weight | 52 kilograms |
| Speed Rating | 2000 RPM |
