MDD112D-N-030-N2M-130PA2

Bosch Rexroth Indramat

MDD112D-N-030-N2M-130PA2

Bosch Rexroth Indramat

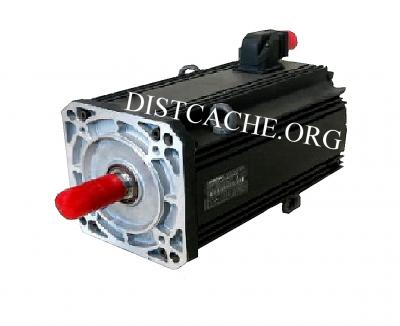

MDD112D-N-030-N2M-130PA2 Image 1

Description

The MDD112D-N-030-N2M-130PA2 is a synchronous AC servo motor in the MDD Series by Bosch Rexroth Indramat. This motor, which has speed synchronized with the input current frequency, is powered by a drive controller that also controls the speed and other parameters. There are two connection cables, a power cable and a feedback cable, and operators will need to individually order connectors for them. It features an integrated multiturn encoder and digital servo feedback, and comes with a shaft that includes a keyway. Optionally, the MDD112D-N-030-N2M-130PA2 can come equipped with a blocking brake that boasts impressive specifications like a 40 Nm holding torque and a 24 Volts DC voltage rating. Its cooling method is natural convection, though it can be supplemented with an optional surface cooling blower. This servo motor has a speed rating of 3000 RPM, a protection rating of IP65, and each motor product package comes marked with a barcode sticker for product identification for ease of order completion.

MDD112D-N-030-N2M-130PA2 by Rexroth, Indramat, Bosch is a Digital AC Servo Motor in the MDD Series. The MDD112D-N-030-N2M-130PA2 features a Nominal Speed of 3000 min and a Centering Diameter of 130 mm. This Digital AC Servo Motor has a Motor Length of D and comes With 40.0 Nm Blocking Brake.

Revision Part #:

MDD-112D-N-030-N2M-130PA2MDD112D N 030 N2M 130PA2MDD112D-N-030-N2M-130-PA2MDD112D-N-O3O-N2M-13OPA2MDD112DN030N2M130PA2
Manufacturer Bosch Rexroth Indramat
Product Type AC Servo Motor
Model MDD112D-N-030-N2M-130PA2
Motor Type Synchronous
Encoder Type Integrated Multiturn Encoder
Shaft Design Keyway
Optional Blocking Brake Yes
Holding Torque 40 Nm
Speed Rating 3000 RPM
Protection Rating IP65
