Description

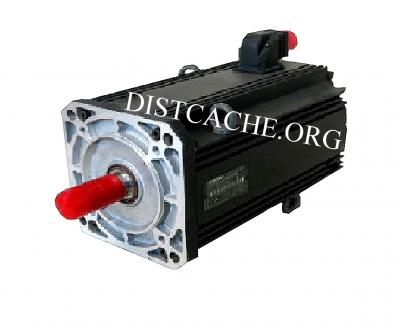

The MDD112D-N-030-N2M-130GB0 is a digital AC servomotor in the MDD Series by Bosch Rexroth Indramat. This versatile unit is notable for its use in machinery that requires reliable synchronization, such as grinding machines. The motor boasts a high cyclic-load capacity and electronic commutation, necessitating continuous start-stop operations for high repetition rates. Furthermore, it has a conveniently compact construction with a high power-to-weight ratio, a temperature sensor to monitor and maintain internal conditions, and ample torque of 130.2Nm. This device is engineered with floating bearings on side A and fixed bearings on side B, suitable for absorbing radial and axial forces. It is equipped with a plain shaft to support nonpositive shaft-hub connections and easy power connection via a side B connector. For further ease of use, the servomotor features a 12-pin flanged socket for feedback connection and accepts either soldered or crimped power cables with a defined metric cable diameter. In terms of performance, the MDD112D-N-030-N2M-130GB0 stands out with its digital servo feedback paired with an integrated multiturn encoder. The AC motor feedback has integrated data storage capability, allowing for easy access to motor parameters. It offers a system accuracy of +/-0.5 angular minutes and a maximum duty cycle time of 15 minutes. This motor's specifications also include Class F insulation, a continuous current of 60.6A, and a continuous torque of 38Nm in standstill mode. Capable of operating in a storage and transportation temperature from -20°C to +80°C, the motor epitomizes durability and resilience. Additionally, its torque constant is 0.63Nm/A and winding resistance is 0.10 Ohms at 20°C, forming a reliable and efficient system for any industrial application.
MDD112D-N-030-N2M-130GB0 by Rexroth, Indramat, Bosch is a Digital AC Servo Motor in the MDD Series. The MDD112D-N-030-N2M-130GB0 features a Nominal Speed of 3000 min and a Centering Diameter of 130 mm. This Digital AC Servo Motor has a Motor Length of D and comes Without Blocking Brake.
Revision Part #:
MDD-112D-N-030-N2M-130GB0MDD112D N 030 N2M 130GB0MDD112D-N-030-N2M-130-GB0MDD112D-N-030-N2M-130-GBOMDD112D-N-030-N2M-130GBOMDD112D-N-O3O-N2M-13OGBOMDD112DN030N2M130GB0| Manufacturer | Bosch Rexroth Indramat |
|---|---|
| Product Type | AC Servo Motor |
| Model | MDD112D-N-030-N2M-130GB0 |
| Application | Grinding Machines |
| Power Connection | Connector on Side B |
| Feedback Connection | 12-pin flanged socket |
| Servo Feedback | Digital with integrated multiturn encoder |
| System Accuracy | +/-0.5 Angular minutes |
| Storage and Transport Temperature | Between -20°C and +80°C |
| Insulation | Class F |
